Building A Strava Authentication CLI In Rust

François Best • 15 January 2019 • 14 min read

I use the Strava API to develop a little web app called Stravels. It requires authentication tokens, which are obtained in the classic OAuth flow way:

  1. Visit a login page on the provider's domain (Strava), passing the app ID.
  2. Log into the provider's system
  3. Arrive to the authorization page, where you can:
    • Authorize the whole app for the permissions it requested
    • Or a subset of permissions
    • Or deny the access altogether
  4. The page then redirects you to a URL with a query parameter containing a code.
  5. You must then do a token exchange by sending this code to the Strava API and they will give you a pair of tokens (refresh and access) in exchange.

Tools Against DRY#

In order to play with the Strava API, I found myself having to build the login page first in my prototypes, complete with handling the redirection. This is not ideal, as this code would likely be thrown away when implementing the actual authentication view, and it slows down the "idea to prototype" phase, so the situation called for a better tool to obtain tokens easily to do quick exploratory API calls.

Services with OAuth APIs usually provide you with a test token in their web UI, but Strava's has a limited scope which made it hard to painlessly explore the full API.

I recently started learning Rust, and was looking for something to build with it. This sounds like the perfect excuse.

Getting Started#

Here's what we want:

  1. A command-line utility (no need for a web app or even a fancy UI)
  2. That takes basic information as input
  3. That lets you login and authorize the app
  4. And gives you back the access and refresh tokens

Point #1 gives us the development context, we need a Rust binary:

$ cargo init strava-auth --bin
$ cd strava-auth

Dependencies#

We are going to split the program into four parts, where we will need to:

  1. Parse command line arguments
  2. Open a URL into the default browser
  3. Start a web server on localhost to handle the redirection
  4. Make HTTP requests to the Strava API

Fortunately, the Rust ecosystem has everything we need:

$ cargo add structopt webbrowser rocket reqwest

Here's a recap of our dependencies:

Before going further, we're going to need to use the nightly version of Rust, as required by Rocket (at the time of writing):

$ rustup override set nightly

Strategy#

Before jumping into the code, here's what we're going to do:

  1. Get the info we need from the command line
  2. Build the authorization URL to open in the browser
  3. Start a web server that listens on localhost for the redirection

According to the Strava authentication documentation, we need the client ID and secret, which can be found for our Strava app in the settings.

We'll pass the client ID and secret to our CLI like this:

$ strava-auth --id 123456 --secret 0123456789abcdef

Command Line Arguments#

Parsing command line arguments (and validating, and displaying help, and all the perks of user interaction) is made easier with structopt:

main.rs
use structopt::StructOpt;

#[derive(Debug, StructOpt)]
#[structopt(name = "strava-auth")]
/// Authorize and authenticate a Strava API app.
///
/// Requires a GUI web browser to be available.
struct Arguments {
  #[structopt(short = "i")]
  id: u32,

  #[structopt(short = "s")]
  secret: String,
}

fn main() {
  let args = Arguments::from_args();
  println!("{:#?}", args);
}

Let's test it:

$ cargo run -- --id 123456 --secret 0123456789abcdef

We should get the following output:

Arguments {
    id: 123456,
    secret: "0123456789abcdef"
}

Building The Authorization URL#

The specification for the url format is given by the Strava authentication documentation.

We'll use the web version: https://www.strava.com/oauth/authorize.

By default we'll also request all the possible scopes, as we can manually authorize them individually in the authorization page. Strava sends us back the approved scopes in the redirection URL, so we'll display them as an output to the user in addition to the tokens.

For the redirect_uri, we'll use localhost as it's where our listening server will be. Luckily, it's whitelisted by Strava for local development, so no need to mess with the OAuth redirection whitelist in the settings there.

Here's what the code looks like:

main.rs
fn make_strava_auth_url(client_id: u32) -> String {
  let scopes = [
    // "read", // Shadowed by read_all
    "read_all",
    "profile:read_all",
    "profile:write",
    // "activity:read", // Shadowed by activity:read_all
    "activity:read_all",
    "activity:write",
  ]
  .join(",");

  let params = [
    format!("client_id={}", client_id),
    String::from("redirect_uri=http://localhost:8000"),
    String::from("response_type=code"),
    String::from("approval_prompt=auto"),
    format!("scope={}", scopes),
  ]
  .join("&");
  format!("https://www.strava.com/oauth/authorize?{}", params)
}

Now we can use this function and pass the generated URL to webbrowser to open it in the default browser:

main.rs
use webbrowser;

// ...

fn main() {
  let args = Arguments::from_args();

  let auth_url = make_strava_auth_url(args.id);
  if webbrowser::open(&auth_url).is_err() {
    // Try manually
    println!("Visit the following URL to authorize your app with Strava:");
    println!("{}\n", auth_url);
  }
}

Here we can see an example of how good error handling is in Rust: rather than calling .unwrap() on the result of webbrowser::open() and crash if it failed to find a suitable browser to open the URL in, we provide a fallback by showing it to the user and letting them open it manually.

This is ideal, because just showing them an error message they can't do much about provides zero value and a lot of frustration, whereas a manual action keeps the process going.

Let's test what we've done so far.

$ cargo run -- --id <your-app-id> --secret <your-app-secret>

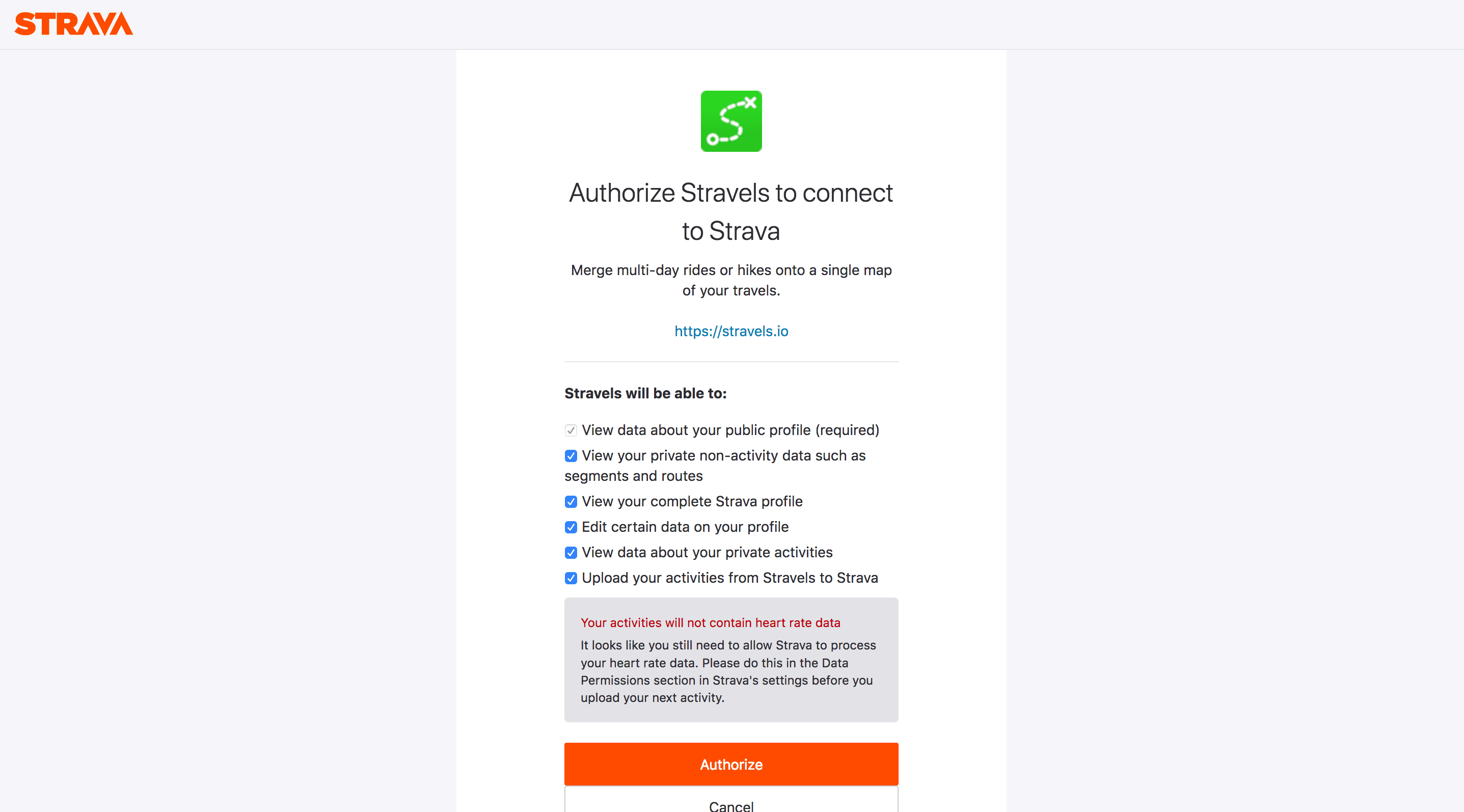

You should get something like this in your browser:

Strava authorization page

At this point, if you click either Authorize or Cancel, you'll get an Unable to connect error, as there is no server to handle the redirect.

Adding The Server#

Spinning a web server is made easy with Rocket. To keep things tidy, we'll implement the server in a separate file server.rs.

We're going to define two routes, one for a successful redirection (which contains a code and a list of approved scopes), and one for redirection errors:

server.rs
use rocket::config::{Config, Environment, LoggingLevel};
use rocket::http::RawStr;

#[get("/?<code>&<scope>")]
fn success(code: &RawStr, scope: &RawStr) -> &'static str {
  println!("Code: {}", code);
  println!("Scope: {}", scope);
  "✅ You may close this browser tab and return to the terminal."
}

#[get("/?<error>", rank = 2)]
fn error(error: &RawStr) -> String {
  println!("{}", error);
  format!("Error: {}, please return to the terminal.", error)
}

Rocket lets us define routes based on the presence of query parameters, and will do the routing for us. However, as both paths are /, we need to tell Rocket to try the success route first, then the error one if either code or scope is missing. This is done with ranking.

If the redirect contains both query parameters of code and scopes, the first handler success will be called, otherwise an error query parameter should be there, and the second handler error will be called.

If neither is present, then we'll get a 404 error (but we don't care since the problem would be on Strava's side).

In both case, we print the parameters to the terminal, and return a string as a response that will be visible in the browser, instructing the user to return to the terminal.

Starting The Server#

Let's add a function to server.rs to start the Rocket server:

server.rs
pub fn start() {
  let config = Config::build(Environment::Development)
    .log_level(LoggingLevel::Off)
    .finalize()
    .unwrap();
  rocket::custom(config)
    .mount("/", routes![success, error])
    .launch();
}

Most of the complexity here is to create a custom configuration for Rocket that suppresses logging to the console, as we don't care much for its internals in this case.

Let's move back to main.rs:

main.rs
// Required for Rocket code generation to work
#![feature(proc_macro_hygiene, decl_macro)]

#[macro_use]
extern crate rocket;

mod server; // Include our `server.rs` file

// ...

fn main() {
  let args = Arguments::from_args();
  let auth_url = make_strava_auth_url(args.id);
  if webbrowser::open(&auth_url).is_err() {
    // Try manually
    println!("Visit the following URL to authorize your app with Strava:");
    println!("{}\n", auth_url);
  }

  server::start();
}

A Case For Multithreading#

By default, Rocket's launch() method will block the thread it's running on to wait for requests, indefinitely, and never return.

This is not ideal, as we're going to have to continue doing stuff once the redirection has succeeded (or failed), and moving that logic into the route handlers would not be recommended: it would duplicate some logic, make the whole program hard to reason about and the code even harder to read without knowing the data flow.

Fortunately, Rust is great for multithreaded applications. So we're going to start the web server in a separate thread, and have it communicate with the main thread with an mpsc channel (there's many multithreading crates in the ecosystem, but the standard library will do just fine here).

Since many things can happen that the server may want to report, we'll start by defining some data structures to exchange:

server.rs
#[derive(Debug)]
pub struct AuthInfo {
  pub code: String,
  pub scopes: Vec<String>,
}

impl AuthInfo {
  pub fn new(code: &RawStr, scopes: &RawStr) -> Self {
    Self {
      code: String::from(code.as_str()),
      scopes: scopes.as_str().split(",").map(String::from).collect(),
    }
  }
}

When everything goes well, the route handler will send an AuthInfo struct back to the main thread, that contains the authorization code and the approved scopes.

Still, we need a single type to send through the channel, and as things can go wrong, let's use a classic Rust construct, Result:

pub type AuthResult = Result<AuthInfo, String>;

Our errors can be strings for now, as there's not much interest to strongly type them at this point.

Passing Data Across Threads#

Since we're going to start our web server in a different thread, we need a way to pass data between the route handler's thread and the main thread.

Rust does that through mpsc channels. We're going to create a transmitter (tx) and a receiver (rx), keep the rx in the main thread and pass the transmitter to the server thread.

This is what it would look like (spoiler alert: this code won't compile yet) :

main.rs
use std::sync::mpsc;

fn main() {
  // ...

  let (tx, rx) = mpsc::channel();
  std::thread::spawn(move || {
    server::start(tx);
  });

  // recv() is blocking, so the main thread will patiently
  // wait for data to be sent through the channel.
  // This way the server thread stays alive for as long as
  // it's needed.
  match rx.recv().unwrap() {
    Ok(auth_info) => {
      // Do something with the result
    }
    Err(error) => eprintln!("{}", error),
  }
}
server.rs
use std::sync::mpsc;

// ...

pub type Transmitter = mpsc::Sender<AuthResult>;

pub fn start(tx: Transmitter) {
  // How do we pass tx to the route handlers ?
}

Data-Race Freedom#

You know how everyone says Rust is data-race free ? We're about to witness an example.

Rocket uses multiple threads to parallelise request handling. Even though we are only going to handle a single request, Rust is here to let us know that things could go wrong when passing data from the route handler back to the main thread.

As we don't have a way to clone our tx when Rocket spawns its worker threads, we're going to use a Mutex instead (performance is not a critical feature here).

We're also going to reduce the number of worker threads to 1, even if it does not magically bring back thread safety, it will at least avoid unnecessary thread creation.

To pass the Mutex, we'll use Rocket's managed state facility. Here's what our updated server.rs looks like:

server.rs
use rocket::State;
use std::sync::Mutex;

// ...

pub type TxMutex<'req> = State<'req, Mutex<Transmitter>>;

// --

#[get("/?<code>&<scope>")]
fn success(code: &RawStr, scope: &RawStr, tx_mutex: TxMutex) -> &'static str {
  let tx = tx_mutex.lock().unwrap();
  tx.send(Ok(AuthInfo::new(code, scope))).unwrap();
  "✅ You may close this browser tab and return to the terminal."
}

#[get("/?<error>", rank = 2)]
fn error(error: &RawStr, tx_mutex: TxMutex) -> String {
  let tx = tx_mutex.lock().unwrap();
  tx.send(Err(String::from(error.as_str()))).unwrap();
  format!("Error: {}, please return to the terminal.", error)
}

// --

pub fn start(tx: Transmitter) {
  let config = Config::build(Environment::Development)
    .log_level(LoggingLevel::Off)
    .workers(1) // No need for multithreading here
    .finalize()
    .unwrap();

  rocket::custom(config)
    .mount("/", routes![success, error])
    .manage(Mutex::new(tx))
    .launch();
}

Authenticating With The Strava API#

If everything goes right, we should now have access to an authorization code, yay ! Let's now turn it into a token.

The Strava documentation tells us what to do:

strava.rs
use std::collections::HashMap;

pub fn exchange_token(code: &str, id: u32, secret: &str) {
  let client = reqwest::Client::new();
  let mut body = HashMap::new();
  body.insert("client_id", format!("{}", id));
  body.insert("client_secret", String::from(secret));
  body.insert("code", String::from(code));
  body.insert("grant_type", String::from("authorization_code"));
  let res = client
    .post("https://www.strava.com/oauth/token")
    .json(&body)
    .send()
    .unwrap()
    .error_for_status()
    .unwrap();
  println!("{:#?}", res);
}
main.rs

mod strava;

fn main() {
  // ...

  match rx.recv().unwrap() {
    Ok(auth_info) => {
      strava::exchange_token(&auth_info.code,
                             args.id,
                             &args.secret);
    }
    // ...
  }
}

Parsing And Displaying The Result#

The result we get is that of the response given back by the Strava API. What we need is actually in the body, which is a piece of JSON.

We can tell Rust to validate that response against a format and make it into a native object using serde (and its friends serde_json and serde_derive).

$ cargo add serde serde_json serde_derive
main.rs
#[macro_use]
extern crate serde_derive;
strava.rs
#[derive(Debug, Deserialize)]
pub struct Login {
  pub access_token: String,
  pub refresh_token: String,
}

pub type LoginResult = Result<Login, reqwest::Error>;

pub fn exchange_token(code: &str, id: u32, secret: &str) -> LoginResult {
  let mut body = HashMap::new();
  body.insert("client_id", format!("{}", id));
  body.insert("client_secret", String::from(secret));
  body.insert("code", String::from(code));
  body.insert("grant_type", String::from("authorization_code"));
  let mut res = reqwest::Client::new()
    .post("https://www.strava.com/oauth/token")
    .json(&body)
    .send()?
    .error_for_status()?;
  Ok(res.json()?)
}

We can now finish the program and display the login data in main.rs:

main.rs
// ...

fn main() {
  // ...

  match rx.recv().unwrap() {
    Ok(auth_info) => {
      match strava::exchange_token(&auth_info.code,
                                   args.id,
                                   &args.secret) {
        Ok(login) => {
          println!("{:#?}", login);
          println!("Scopes {:#?}", auth_info.scopes);
        }
        Err(error) => eprintln!("Error: {:#?}", error),
      }
    }
    Err(error) => eprintln!("{}", error),
  }
}

Lifetime Issues#

In the case where something wrong happens, we have a problem: the main thread exits too quickly, and along with it goes the server thread, which does not have enough time to send its response to the browser. So instead of our nice error message, we see a "Connection reset" error.. :/

We don't have this issue on the happy path, as the request to the Strava API likely adds a little delay before the program exits, and lets the server send the response.

It would be nice if we could let the server respond properly, then kill the program. We can do so by adding a small delay in the main thread if an error occurs:

match rx.recv().unwrap() {
  Ok(auth_info) => {
    // ...
  }
  Err(error) => {
    eprintln!("{}", error);
    // Let the async server send its response
    // before the main thread exits.
    std::thread::sleep(std::time::Duration::from_secs(1));
  }
}

Closing Notes#

While this project is not an example of Rust's best practices (in term of error handling, thread synchronization, logging etc..), it shows how straightforward it can be to build a quick prototyping tool to solve a pain point in Rust, by leveraging the safety of the language and the diversity of the ecosystem.

Resources#

The source code for this project is available on GitHub.


François Best

Freelance developer & founder

Edit this page on GitHubDiscuss on Twitter
